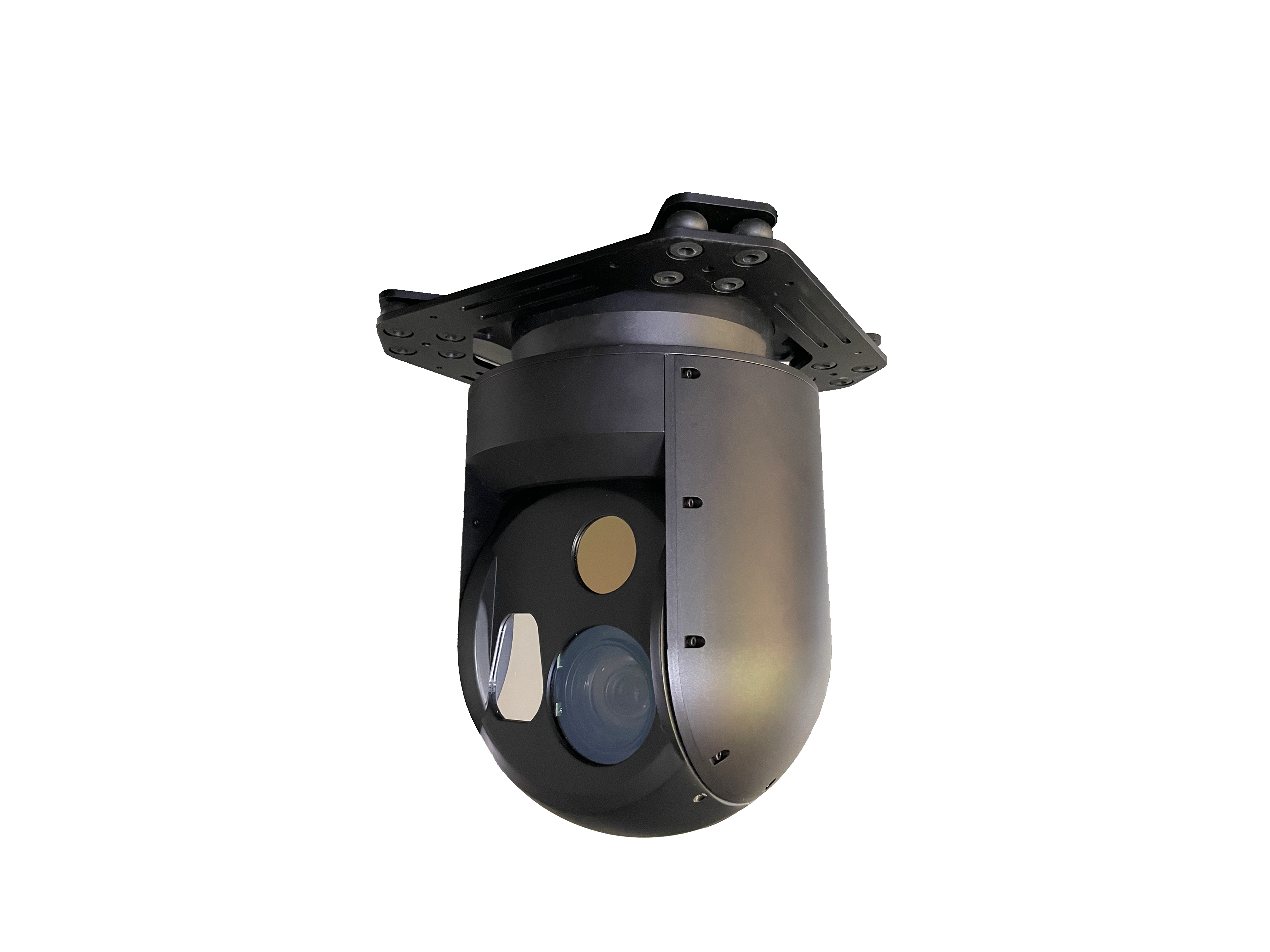

Digital Eagle YPO-25 Three-Axis 360° Drone UAV Camera

Cyfrowe kamery orła są odpowiednie dla środowiska, które wymaga ochrony na wyższym poziomie, z wodoodpornymi odpornymi na kurz funkcjami mgły. Kamery są zintegrowane z światłem widzialnym w wysokiej rozdzielczości, obrazowaniem termicznym w podczerwieni, modułami wyszukiwania automatycznego śledzenia i zasięgiem laserowego. Kamery mogą osiągnąć nadzór dnia i noktowizyjnej, Pomiar temperatury, śledzenie celu, znalezienie zakresu laserowego i inne dodatkowe funkcje, znacznie ułatwiające system stosowany w różnych branżach

Cyfrowe kamery orła można montować na wielu wirnikach, stałych skrzydłach, dronie VTOL, helikopterze, samolotach i innych rodzajach latających pojazdów.

ABS

135mm*200*220mm

50% T/T in advance, 50% T/T before loading

2 weeks

Aviation aluminum box

أسود

1 unit

Wuxi, China

YPO-25 EO/IR/RF Camera

zapytanie

Napisać recenzję

Digital Eagle

YPO-25 Three Axis EO/IR/RF Camera

EO/IR/IRF Infrared Thermal Imaging Camera For UAV /Drone

Digital Eagle YPO-25 Three-Axis 360° Drone UAV Camera 2

Three-Axis 360° Stable System 40X Optical Zoom HD Camera

TIE Digital Image Detail Enhancement Technique with Edge Sharpening

Image noise reduction:Digital filtering
Field of view angle 19.5°x14.7°（32.0°x24.2°）

Technical Data Sheet

Visible light parameter

Optical zoom factor	30x zoom	Video format	1080p
Pixels	About 2.13 million pixels	Lens focal length	F=4.3mm(wide-angle)to 129mm(remote)
Temperature range	-20 degree ~ 60 degree	Power consumption	2.9 W (zoom work/no focus ) 3.7 W (zoom and focus both work)

Physical electrical performance parameter

Stability system	Directional pitch two axis structure	Various rotation angles	Pitch +30°~-90, Yaw 360°
Stable accuracy	Better than 0.1 degree	Power supply	12v DC input, total power consumption is less than 15w
Speed range	The maximum rotational angular speed is 30 degree /s, the	Diameter	180mm
Minimum steady angular velocity is less than 1 degree/s		Stability system	Two axis structure
Uzito	<2kilo	Ukubwa	180mm180mm240mm

Thermal imaging parameter

Pixels	640*480	Wavelength range	8~14μm
Power consumption	2.5W	NETD	≤50mk@25℃
Image noise reduction	Digital filtering	Frame rate	50hz
Video output	HDMI	Mage enhancement	TIE Digital Image Detail Enhancement Technique with Edge Sharpening
Joto la uendeshaji	-20℃~+60℃	Humidity	≤95%( Non-condensing)
Electronic zoom	2x 4x Electronic zoom	Field of view angle	19.5*14.7

Laser Rrange Finder Parameter

Range	2000m	Beam Divergence	3mrad
Resolution	0.5m	Frame rate	50hz
Beam	905nm pulse laser	Video output	HDMI

Wide Applications

Digital Eagle YPO-25 Three-Axis 360° Drone UAV Camera 3

Daytime image with 30x optical zoom

Digital Eagle YPO-25 Three-Axis 360° Drone UAV Camera 4

One key switch to thermal lens

Digital Eagle YPO-25 Three-Axis 360° Drone UAV Camera 5

Thermal image for night vision,picture in picture

Digital Eagle YPO-25 Three-Axis 360° Drone UAV Camera 6

Target tracking for security monitor

Products Features

Digital Eagle YPO-25 Three-Axis 360° Drone UAV Camera 7

YPO-25 Drone Accessories HD EO/IR/RF 3 Axis Drone Camera

Both daytime and night imaging

Point zoom tracking

Real time video transmission to command center

Mounted on multi-rotor drones/fixed-wing drone

FAQ

Which certificate do you have for your equipment?
We have ISO9001, ISO14001, CE certificate
What can I buy from you?
Agriculture Drone, Multi-rotor Drone, Fixed Wing Drone, Drone Camera, Anti Drone Device
If OEM is acceptable?
Ndiyo. We can do OEM.
What is your term of payment?
50% T/T in advance, 50% T/T before delivery
What's your advantage compared with other suppliers?
Own R&D center, five factories in China- More than 400 patents. - Professional teams - Long time practical experiences - Global markets coverage
How do you provide training service?
All our products are modular-design, which is easy to operate and maintain for anyone from anywhere. We also provide on-line courses and 3-5 day on-site training in our company. Every client will be required to pass the exam before operating.
