Product Introduction

 Digital Eagle

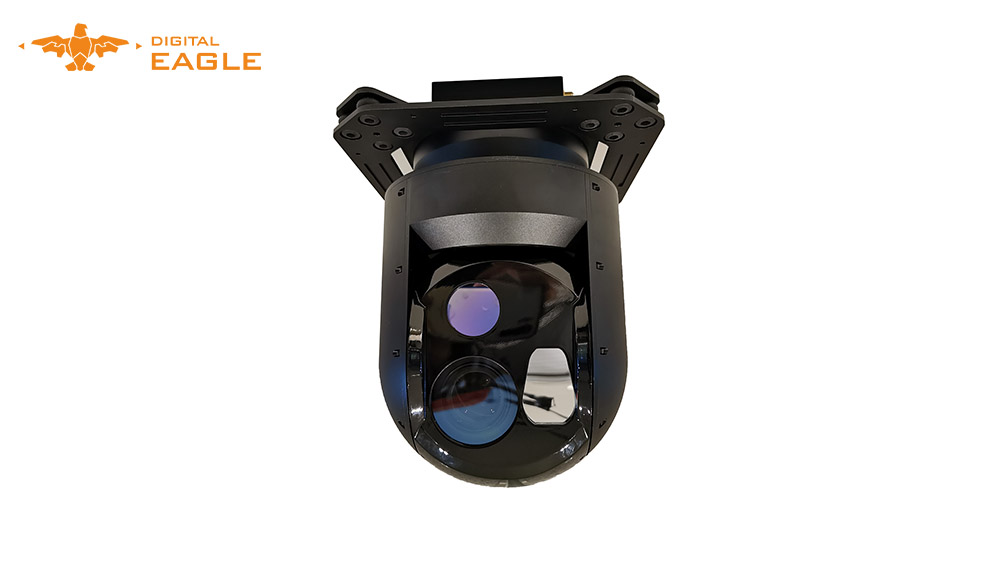

YPO-25 Three Axis EO/IR/RF Camera
EO/IR/IRF Infrared Thermal Imaging Camera For UAV /Drone

Three-Axis 360° Stable System 40X Optical Zoom HD Camera

TIE Digital Image Detail Enhancement Technique with Edge Sharpening

Image noise reduction:Digital filtering
Field of view angle 19.5°x14.7°(32.0°x24.2°)

Technical Data Sheet

1F
Visible light parameter
Optical zoom factor30x zoomVideo format1080p
PixelsAbout 2.13 million pixelsLens focal lengthF=4.3mm(wide-angle)to 129mm(remote)
Temperature range-20 degree ~ 60 degreePower consumption

2.9 W (zoom work/no focus ) 3.7 W (zoom and focus both work)

2F
Physical electrical performance parameter

Stability system

Directional pitch two axis structure

Various rotation anglesPitch +30°~-90, Yaw 360°

Stable accuracy

Better than 0.1 degree

Power supply12v DC input, total power consumption is less than 15w

Speed range

The maximum rotational angular speed is 30 degree /s, the

Diameter180mm

Minimum steady angular velocity is less than 1 degree/s

Stability systemTwo axis structure

Weight

<2kg

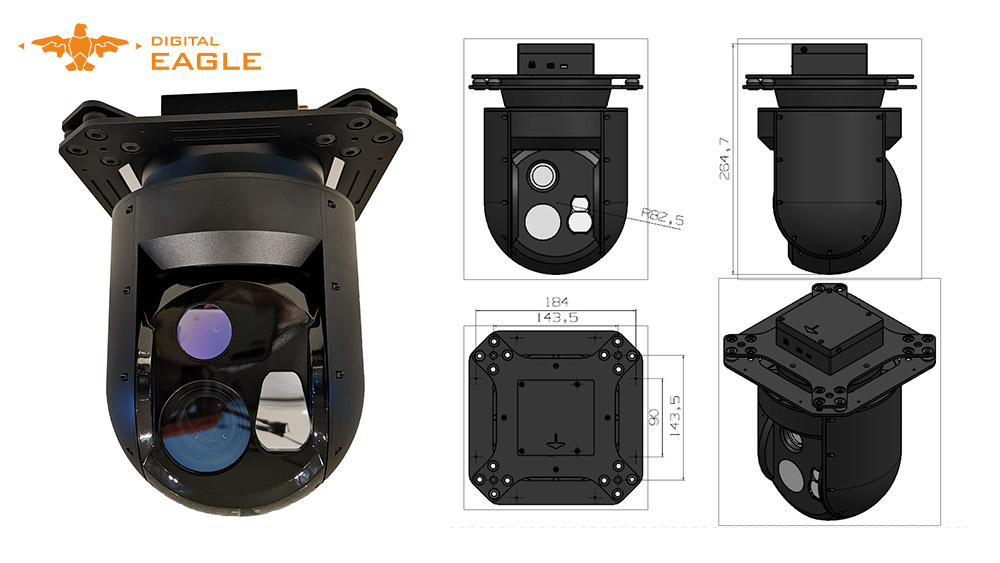

Size180mm*180mm*240mm
3F
Thermal imaging parameter
Pixels640*480Wavelength range8~14μm
Power consumption2.5WNETD≤50mk@25℃
Image noise reductionDigital filteringFrame rate50Hz
Video outputHDMIMage enhancement

TIE Digital Image Detail Enhancement Technique with Edge Sharpening

Operating temperature-20℃~+60℃Humidity≤95%( Non-condensing)
Electronic zoom2x 4x Electronic zoomField of view angle19.5*14.7
4F
Laser Rrange Finder Parameter
Range2000mBeam Divergence3mrad
Resolution0.5mFrame rate50Hz
Beam905nm pulse laserVideo outputHDMI
Wide Applications

Daytime image with 30x optical zoom

One key switch to thermal lens

Thermal image for night vision,picture in picture

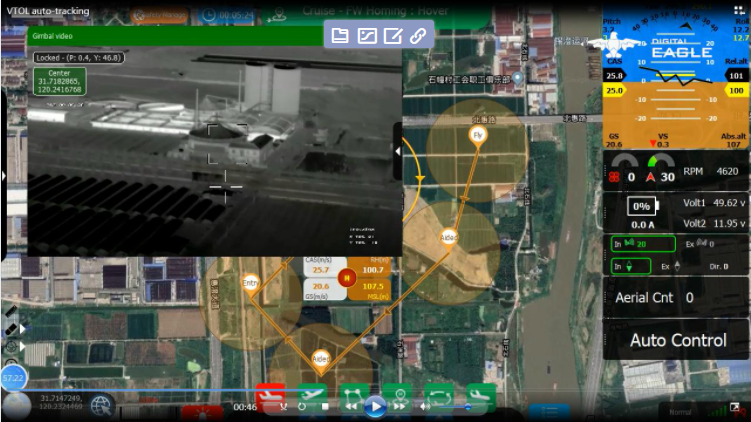

Target tracking for security monitor
Products Features
bg

YPO-25 Drone Accessories HD EO/IR/RF 3 Axis Drone Camera

Both daytime and night imaging

Point zoom tracking

Real time video transmission to command center

Mounted on multi-rotor drones/fixed-wing drone
